ASTM – AAMA – NAFS – CSA – CE
Our mobile stacking spray rack system is designed to place a constant uniform water spray on the test unit. Multiple shutoff valves allow for easy control of spray area. All valves are within the operators reach from floor level. Multiple spray racks can be daisy-chained to cover large areas. Our racks are built for the rigors of laboratory testing and will provide years of reliable performance.
Key Features
- Lightweight yet sturdy stacking system saves space and can be removed from the test area
- Multiple shutoff valves at operators height to shutoff horizontal running branches
- Corrosion resistant materials used throughout
- ASTM E331
- ASTM E547
- Large orifice spray nozzles minimize clogging
- Modular design for daisy-chaining of rack units
- Spray properties meets the requirements of North American fenestration test standards
- Water spray rate designed to meet 5.0 U.S. gal/ft2 . h (3.4 L/m2 .min)
- Optional: Recycling system filters and pumps water via computer controlled interface
- Optional: European CE version is available
- Optional: Water Calibration Catch System (WC-1000)

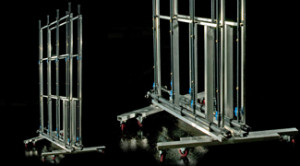

Multiple Spray Racks
Stacked for storage
Uniform Spray
Mobile system provides consistent uniform spray over large areas
